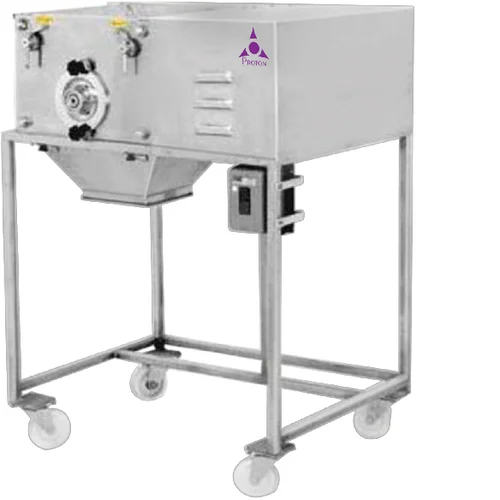

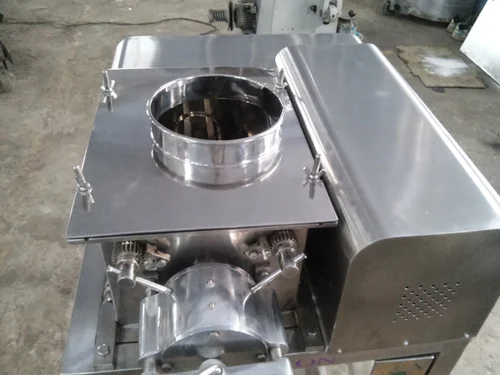

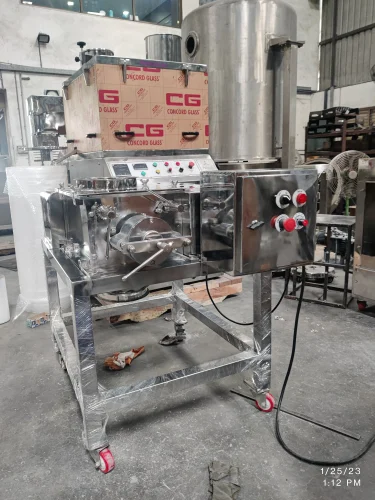

Granulator Machine For Pharma

Material SS316
Automation Grade Semi-Automatic
Phase : 3 Phase
Voltage (V) : 440 V
Frequency (Hz) : 50 Hz
Condition : New
output : 30 to 200kg/hr
Machine Dimension : 710 (L)x 420(B)x 1220 (H)
Power supply : 1HP/1440 RPM
Hopper Size : 35 liters
Charging Height : 1106 mm
Granulator dia : 0.8-5mm
Motor Power : 2.2 (kw)

THE MACHINE IS HAVING FOLLOWING MAJOR SALIENT FEATURES: –

Continuous oscillating stirrer drive.
Easily cleanable as entire working zone and stirrer can be dismantled quickly.
Simple screen holding and tensioning device.
Durable and economic screen.
Screens of different mesh sizes available.
Totally enclosed Gearbox, mounted on a Base Pillar.
No External lubrication required.
All contact parts made of Stainless Steel 316 Material.
Main drive motor is of Crompton Greaves Made.
Long life & Economic cost of Screens
Castor wheel is provided for easy movement

Additional Information:

Pay Mode Terms: T/T (Bank Transfer),D/P,D/A
Port of Dispatch: MUMBAI
Production Capacity: 4
Delivery Time: 4WEEKS
Packaging Details: EXPORTWORTH PACKING
